Metal End Clip Setting Die
Metal end clip setting die for compatible hand presses. Tooling selection and customization based on clip dimensions and press specifications...
Product Overview

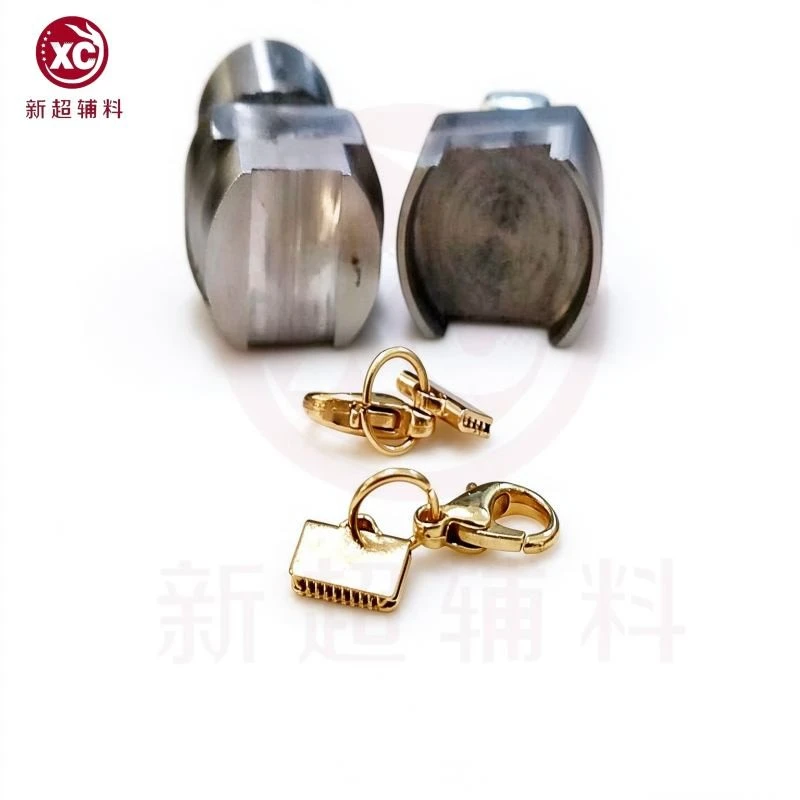

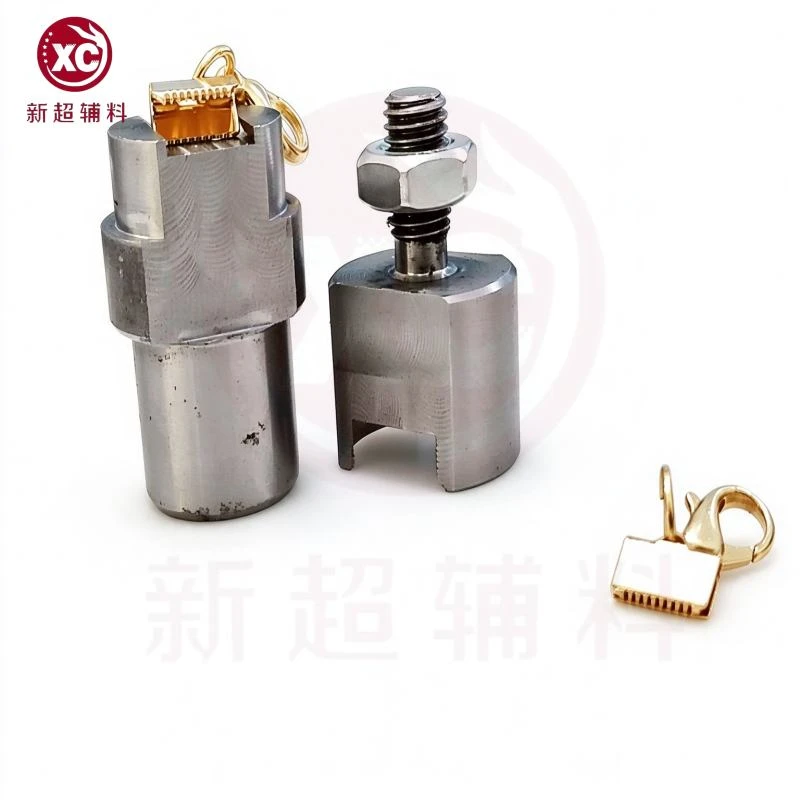

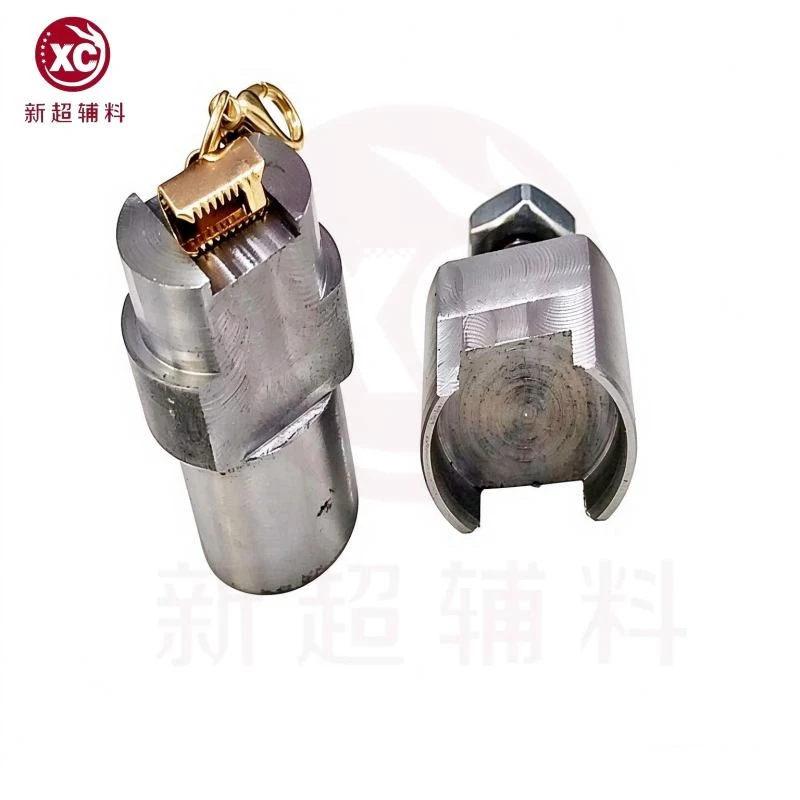

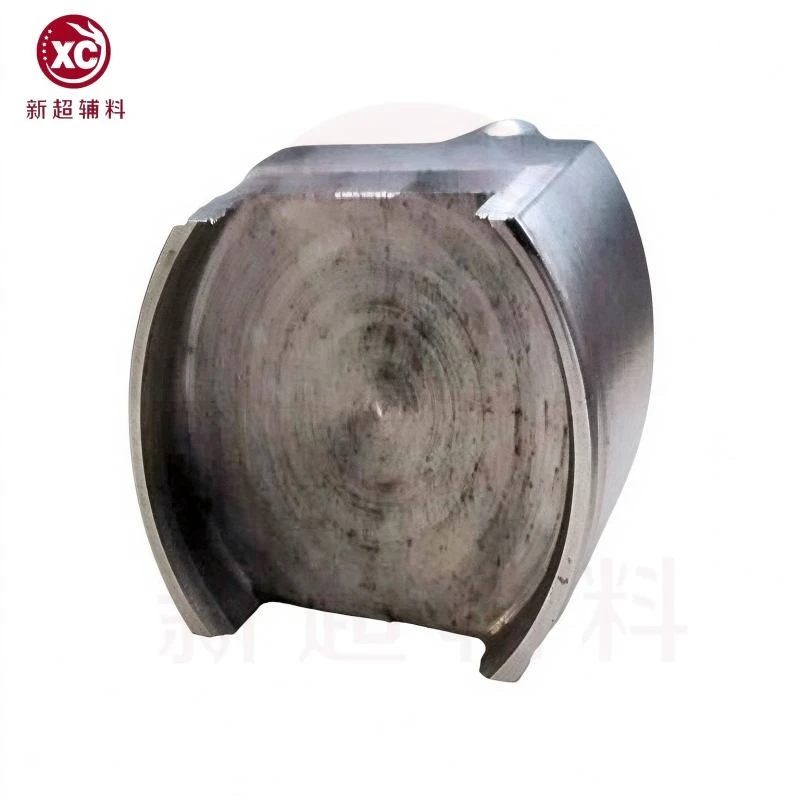

The Metal End Clip Setting Die is designed for attaching metal end clips to suitable materials using a compatible hand press. It provides the tooling needed to position and secure the clip during installation, making it suitable for garment accessory production and other applications involving metal end fittings.
The die is available as specialized tooling for the end clip design shown. Its configuration should be matched to the clip dimensions and the hand press being used to ensure proper fit and operation.
Product Features
Dedicated End Clip Tooling
- Designed for installing metal end clips with a compatible hand press.
Metal Die Construction
- Made from metal for use in mechanical fastening applications.
Clip-Specific Configuration
- The tooling design can be matched to the shape and dimensions of the end clip.
Hand Press Application
- Intended for use with compatible manual pressing equipment.
Tooling Selection Support
- Compatibility can be assessed using clip samples, dimensions, and press specifications.
Product Specifications
| Item | Specification |
| Product Name | Metal End Clip Setting Die |
| Product Type | Hand Press Die |
| Material | Metal |
| Application | Metal End Clip Installation |
| Operating Equipment | Compatible Hand Press |
| Die Configuration | Based on End Clip Design |
| Dimensions | To Be Confirmed |
| Customization | Subject to Sample and Equipment Requirements |
Applications
The Metal End Clip Setting Die is intended for production processes that require metal end clips to be attached to suitable materials.
Potential applications include garment accessories, cord or strap end fittings, and other products using compatible metal end clips. Final suitability depends on the clip design and the material being processed.
How to Select the Correct Die
Selecting the appropriate die requires matching the tooling to the end clip and the installation equipment.
- End Clip Dimensions: The clip width, shape, and attachment structure determine the required die profile.
- Hand Press Compatibility: The press mounting interface and working arrangement must match the die.
- Application Requirements: The material receiving the clip and the intended attachment method should be considered before ordering.
Customization and Ordering
For a tooling inquiry, please provide a sample or drawing of the metal end clip, its dimensions, and the hand press model or mounting details where available. These details help determine whether the die matches your application.
Contact Xinchao Accessories to discuss the Metal End Clip Setting Die and your tooling requirements.
